The HA-6
is designed to provide 6 meter transverter support for
the HT-37 transmitter and companion receiver. These units

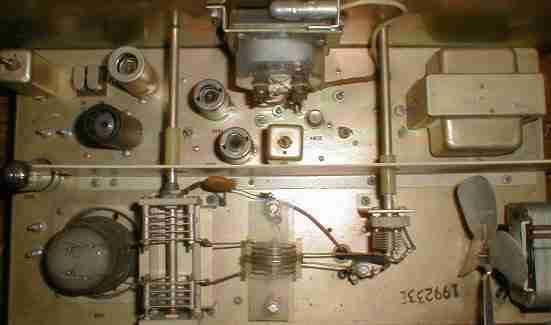

are well built. The final is a 5894 tube (lower left corner)
operating in Class "B" linear operation. The Receiver
converter uses low noise nuvistors (RF amp, small low
noise tubes). The unit has a interesting tuning indicator

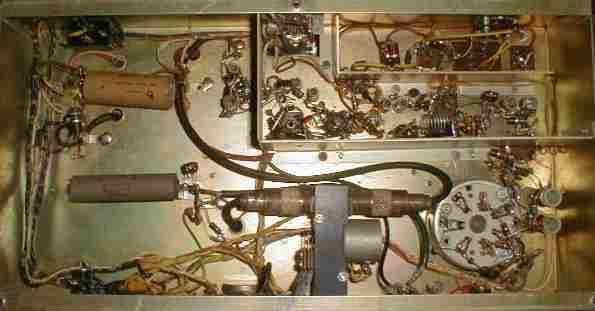

tube -6FG6. In the bottom chassis view you can see the
DOWKEY relay for antenna change over support. The amplifier
final includes a small fan to keep things cooled down
|
