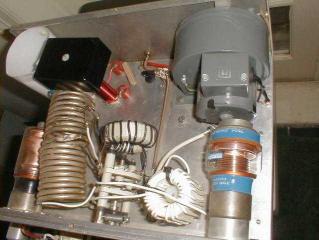

The right picture is the
top view of the amplifier. The black hat on the RFC isolates
the HV from the cover (it is a little too close).

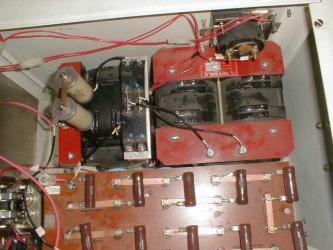

The power supply below is a tuned choke output using two
.05 caps at 5000VDC. The output is 4000VDC at 1.5 amps.
The transformer and choke are Dahl's. The AC is switched
is a mercury plunger relay. The cap array is 10 each 500
volt 550 umf. caps. with resistor bypass.
|
