The Central Electronics

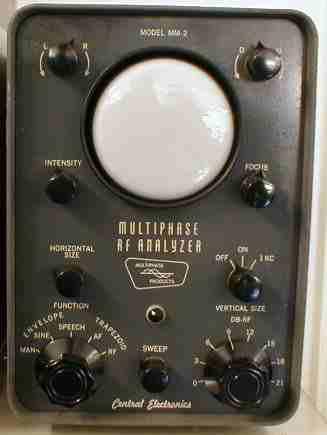

MM-2 station monitor allowed the user to see a oscillscope
derived picture of the receiver IF and the transmitter
modulated RF. Below are a couple of typical waveforms.
This is a good SSB Transmitted signal.
This is a SSB with flat topping - to much mike
gain.
This is a SSB signal with to much mike gain and
compression.
