Collins 32S-3 Transmitter

S E C T I O N S



This page identifies the 32S-3 the companion Transmitter for the 75S-3 "series" receiver. The 32S-3 could be defined as the last of the S-Line product series transmitters. The 32S-3 transmitter product includes the 32S-3A variant. This unit is quite rare and includes the second crystal bank allowing almost general coverage. In the Collins collectors market a 32S-3A sells for about ten times the 32S-3 (08/00).  It is interesting to note that one of the major enhancements over the 32S-1 was for the CW ops. Note the difference between the 32S-1 front panel and the 32S-3 front panel "CW Cal.". Art Collins, was after all was a brass pounder!

The RF section includes dual 6146's.

Click to Enlarge RF Section picture.

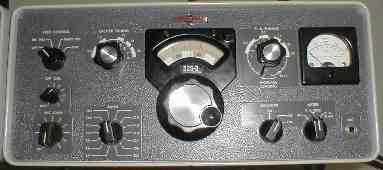

Click on the 32S-3 front view to Enlarge.
Click on 32S-3 top view to Enlarge
